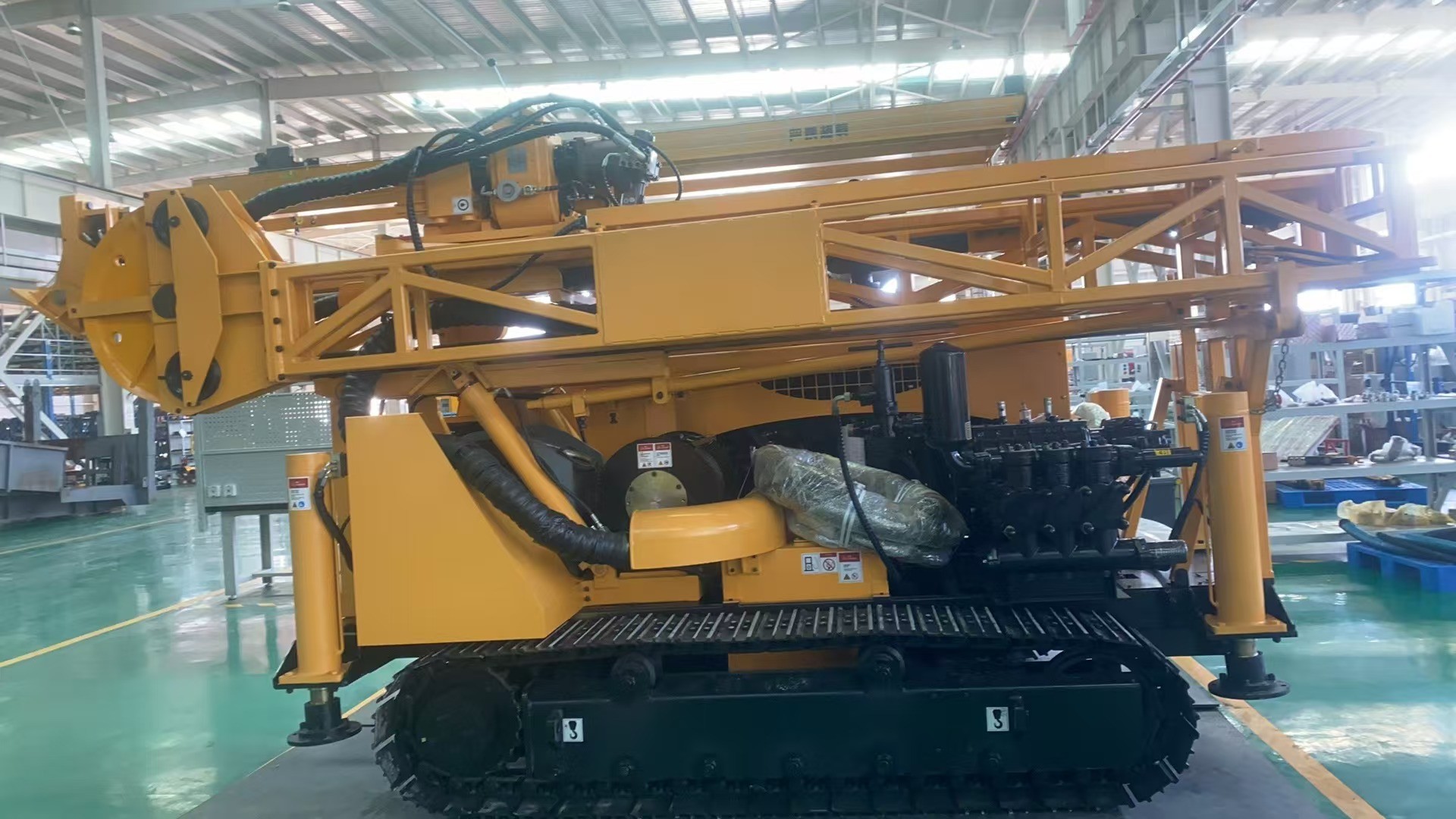

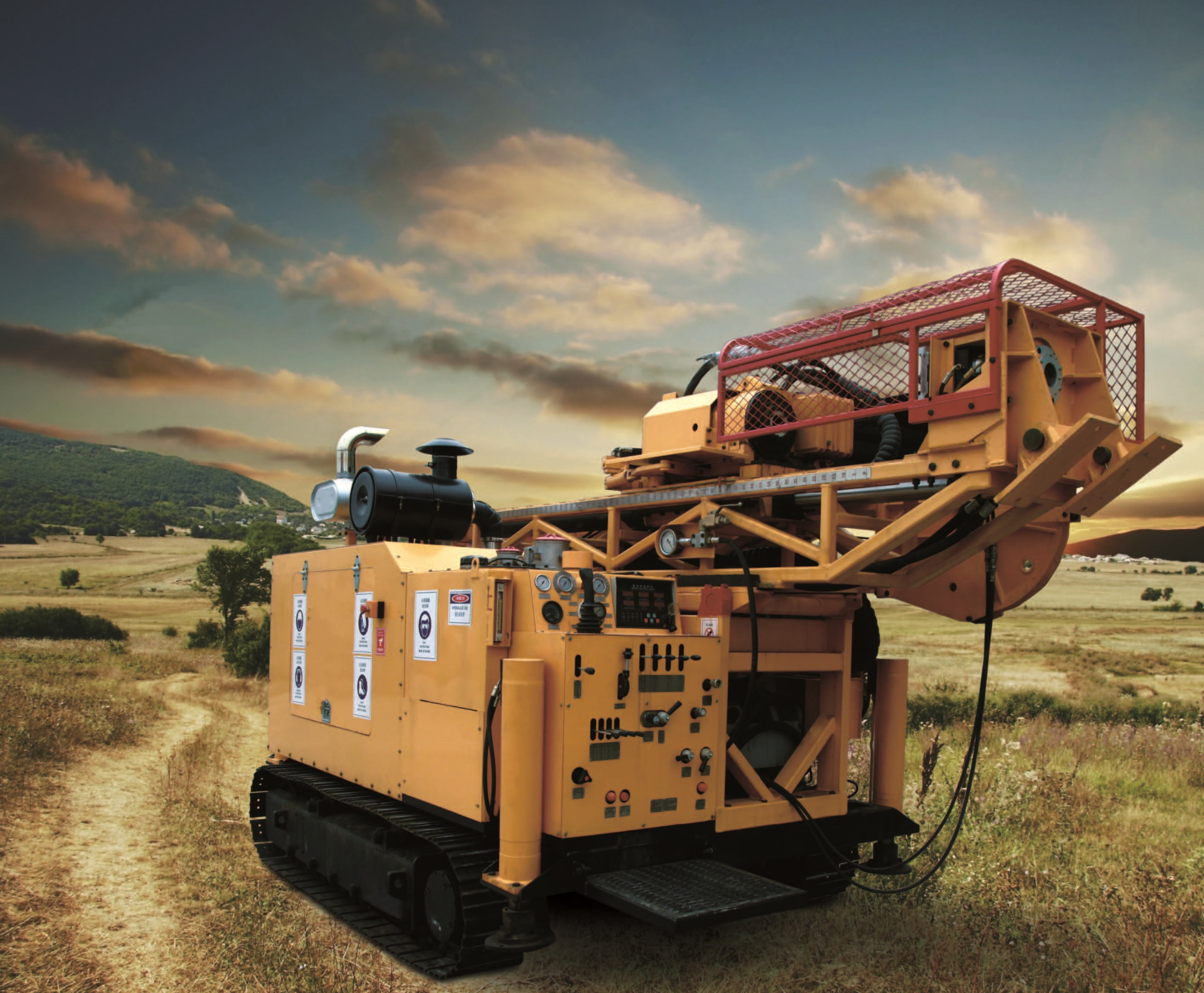

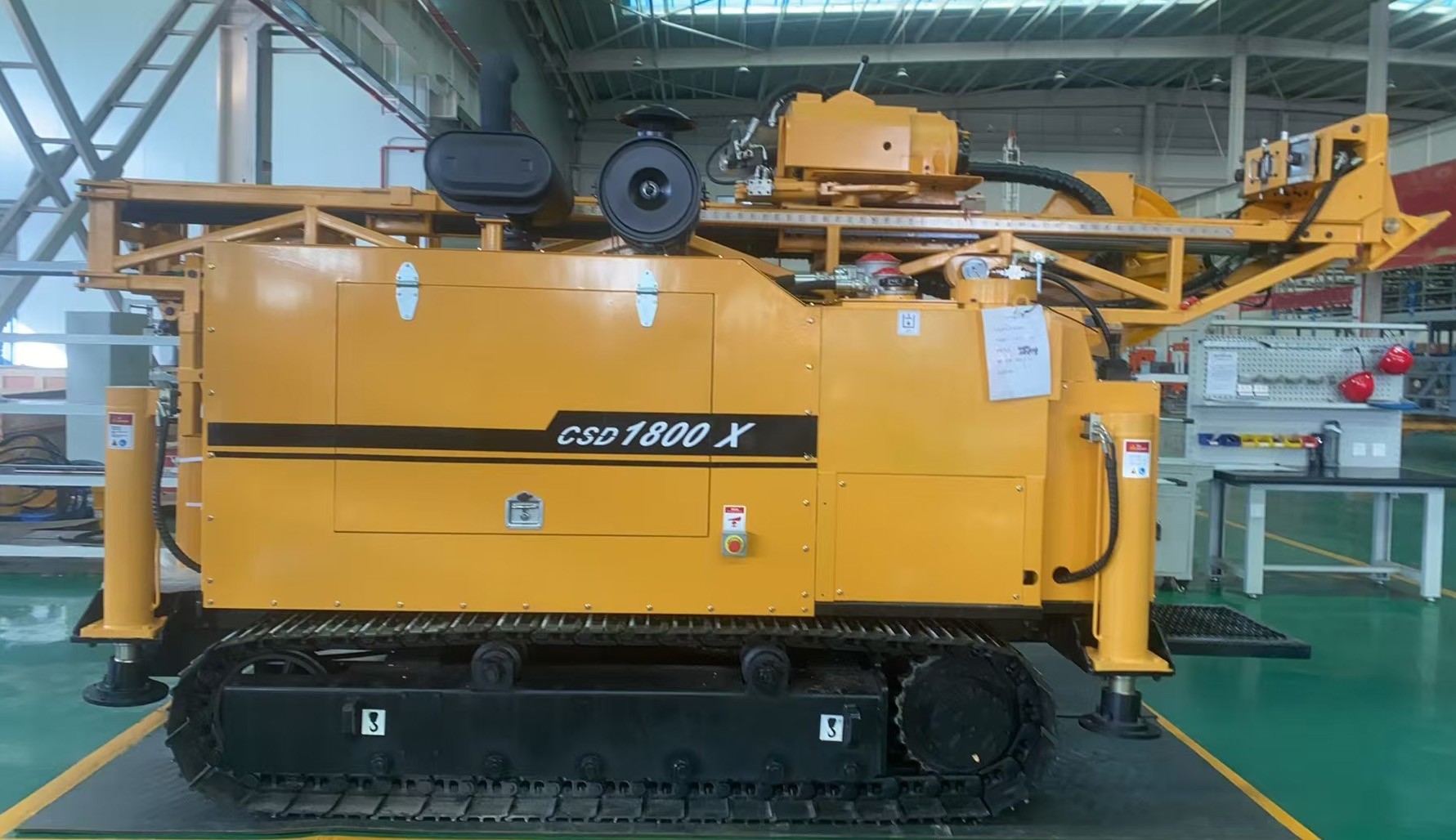

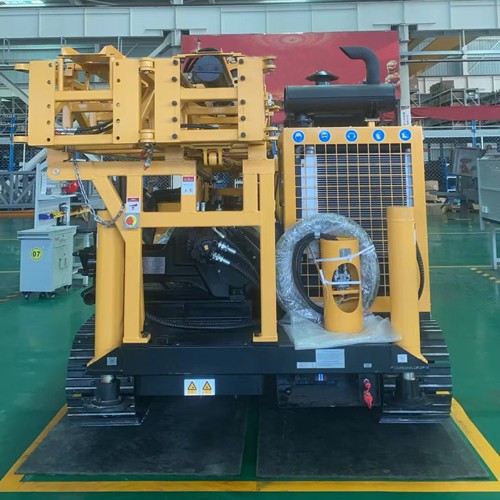

CSD1800X Diamond Core Drilling Rig

Category： Best Selling
Depth Capacity:N 1,700m / H 1,200m / P 700m
Main Hoist:135KN（bare drum）
Max Pull Force:189KN
Max Rod Pull Length:6m
Engine Power:179KW@2,200RPM Cummins
Product description：CSD1800X core drilling rig is specially designed for diamond core drilling. Track crawler mounted rig facilitates moving around with great convenience.
INQUIRY EMAIL

Features：

● 4 speeds gear box ；

● Big chuck diameter up to 117mm；
● Stroke of drill head 3.5m suitable for 3m length rods；
● Drill head has sliding function ;
● Mast has dump function；
● Mast folding design minimizes transportation dimensions；
● Independent hydraulic leveling jacks;
● Accurate control of feed pressure;
● Floating head protects the rod threads during make up and break out;
● Real time display of drilling data on the control panel gauges;
● Hydraulically controlled mud pump flow at the rig control panel;
● Premium hydraulic components of European/US origin;

● Wire line winch with automatic rope spooler.

After sales service

Our expert service engineer team is globally available, 24/7.

Note

Rigs are available with different mounting options and diesel or electric drive options. Please contact sales@cortechdrilling.com for more information.

Technical Specifications

Drilling Capacity
Diameter of Drill Rod	N, H, P
Drilling Depth	1,700m 1,200m 700m
Engine
Model	Cummins 6CTA8.3-C240
Type	Turbo
Power	179KW
RPM	2,200rpm
Drill Head
Max Torque	5,500Nm
Max Rotation	1,050rpm
Feed Stroke	3,500mm
Max Inside Diameter	117mm
Pull/Push	189KN/50KN
Main Winch
Max Pull	135KN
Pulling Speed	33m/min(LOW),49m/min(HIGH)
Rope Diameter	22mm
Rope Length	35m
Wireline Winch
Max Pull	11KN(bare drum)
Pulling Speed	120m/min
Rope Diameter	6.6mm
Rope Length	1,500m
Mast
Length	10m
Drilling Angle	45°-90°
Dump Length	1.1m
Foot Clamp
Drill Rod	N, H, P
Travelling Capacity
Max. Permissible Gradient	30°
Max. Travelling Speed	2km/h
Transporting Dimensions
LWH	5,530×2,350×2,850mm
Total Weight
Total Weight	11.3t
