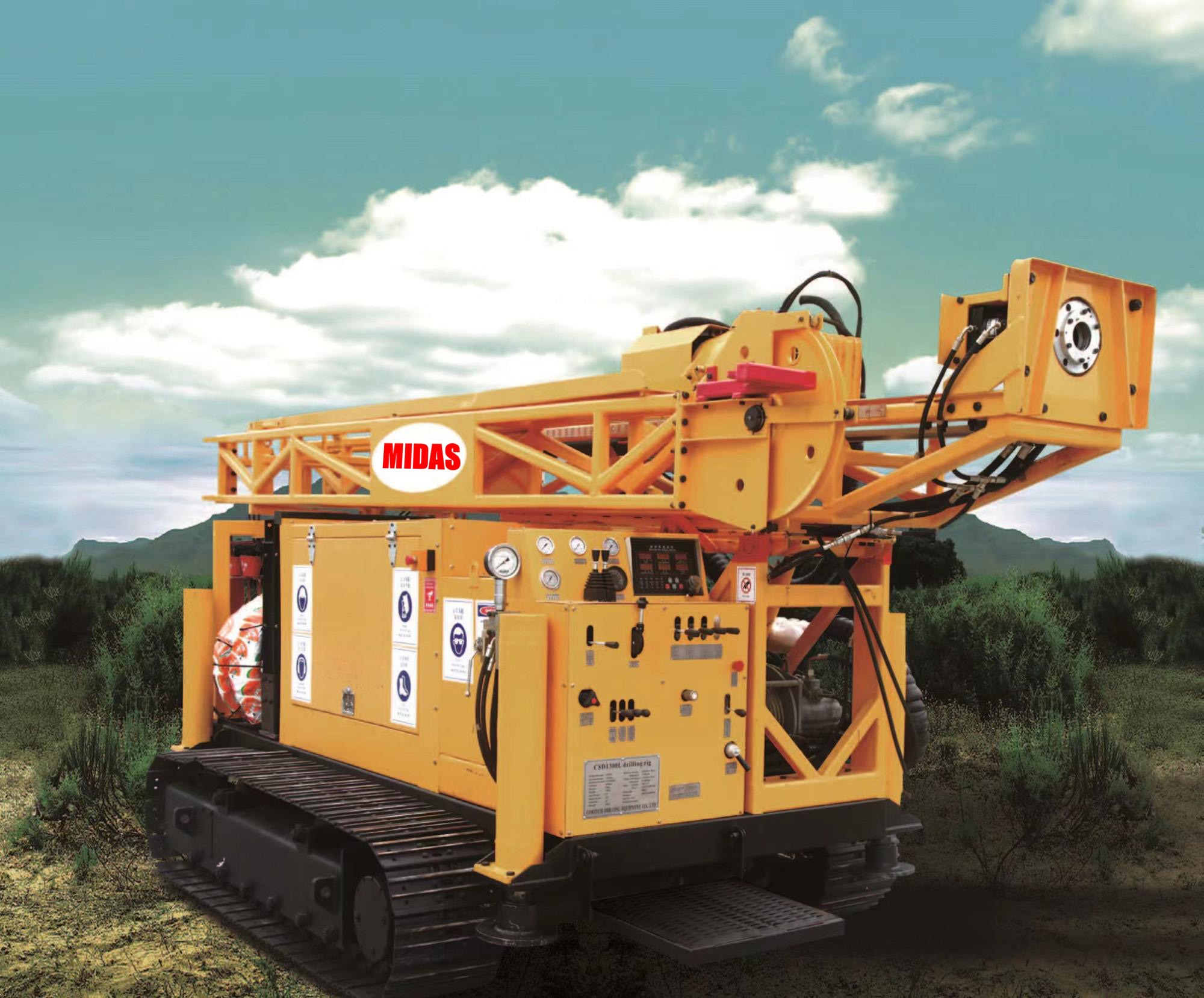

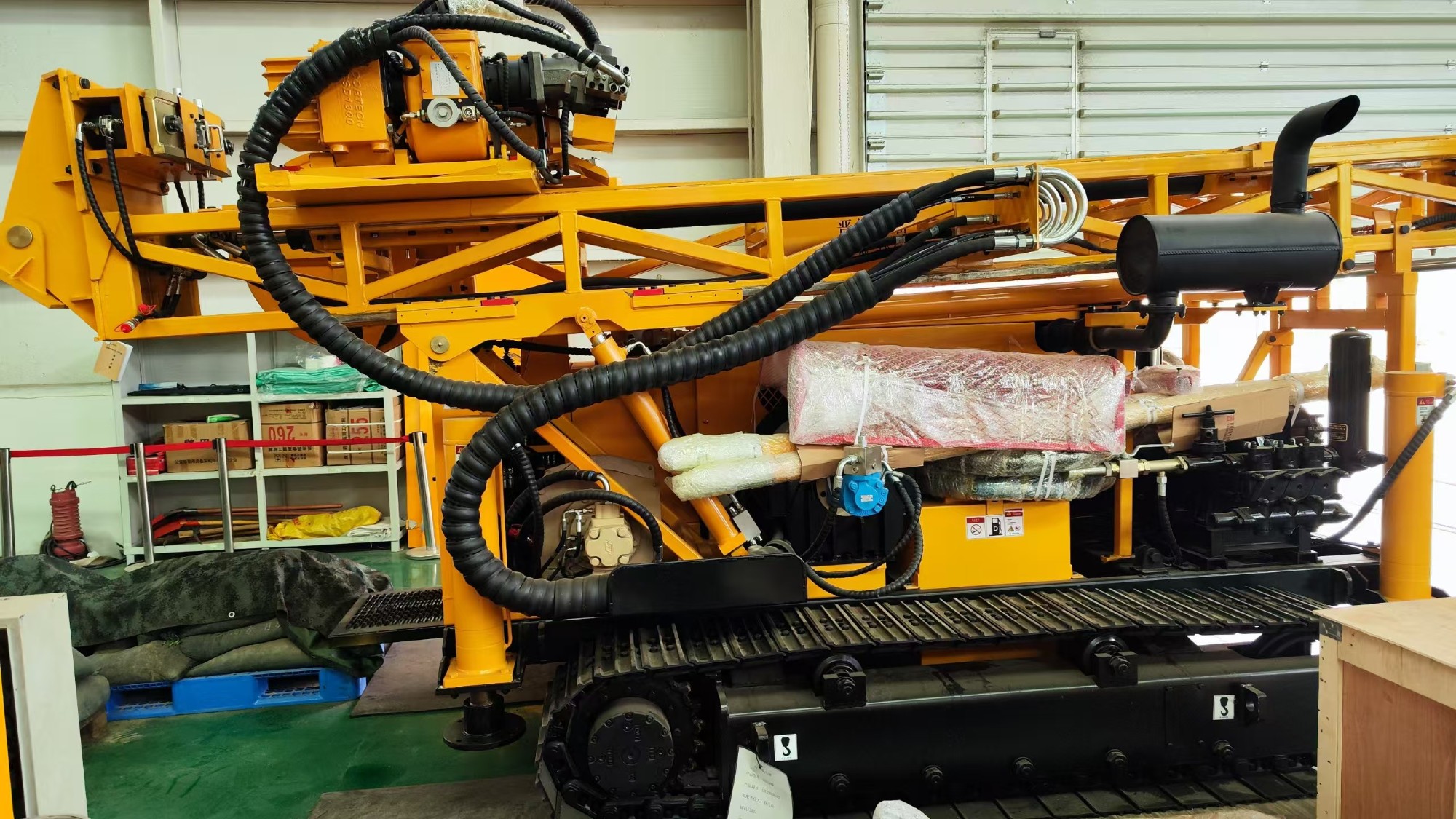

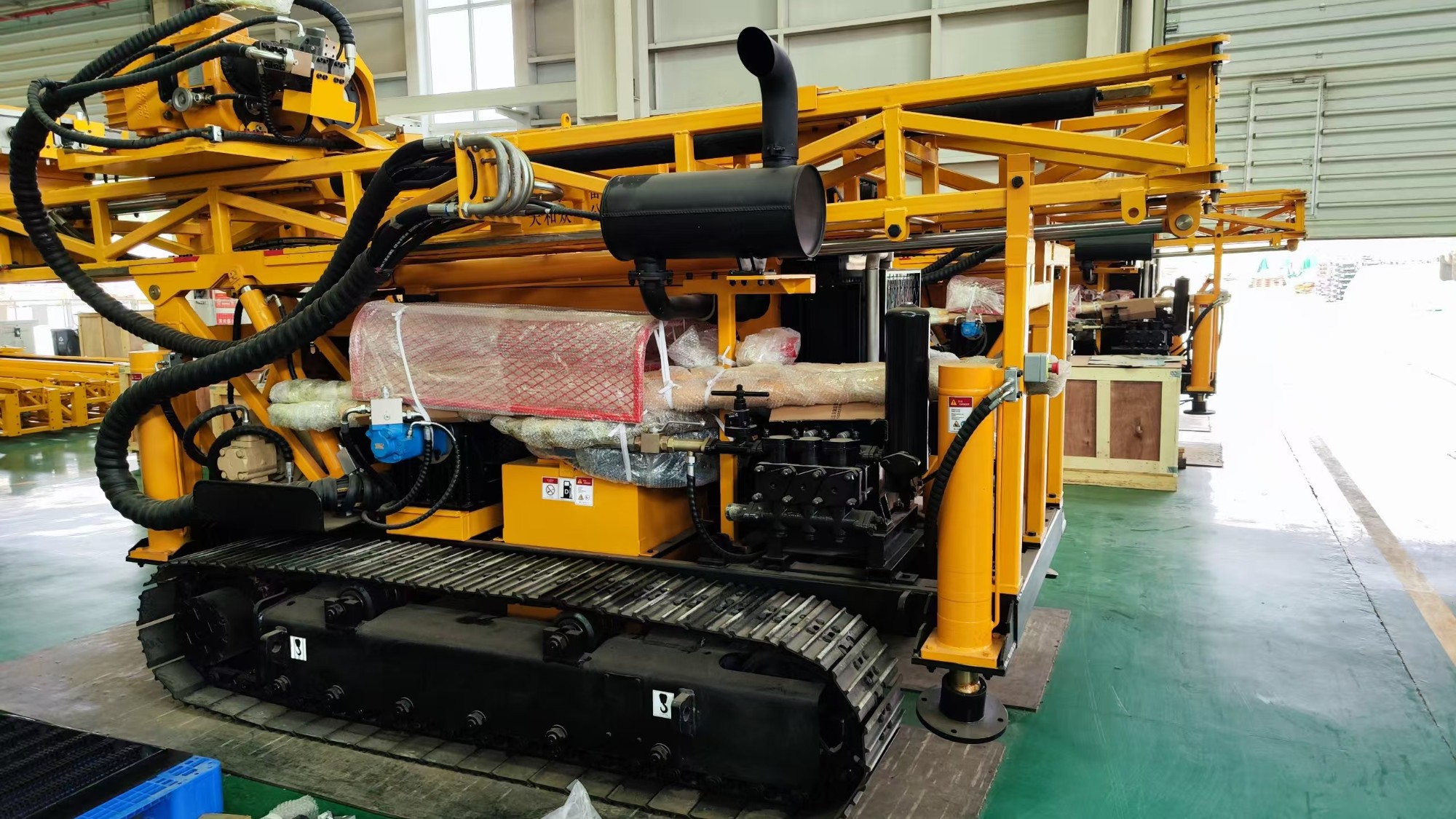

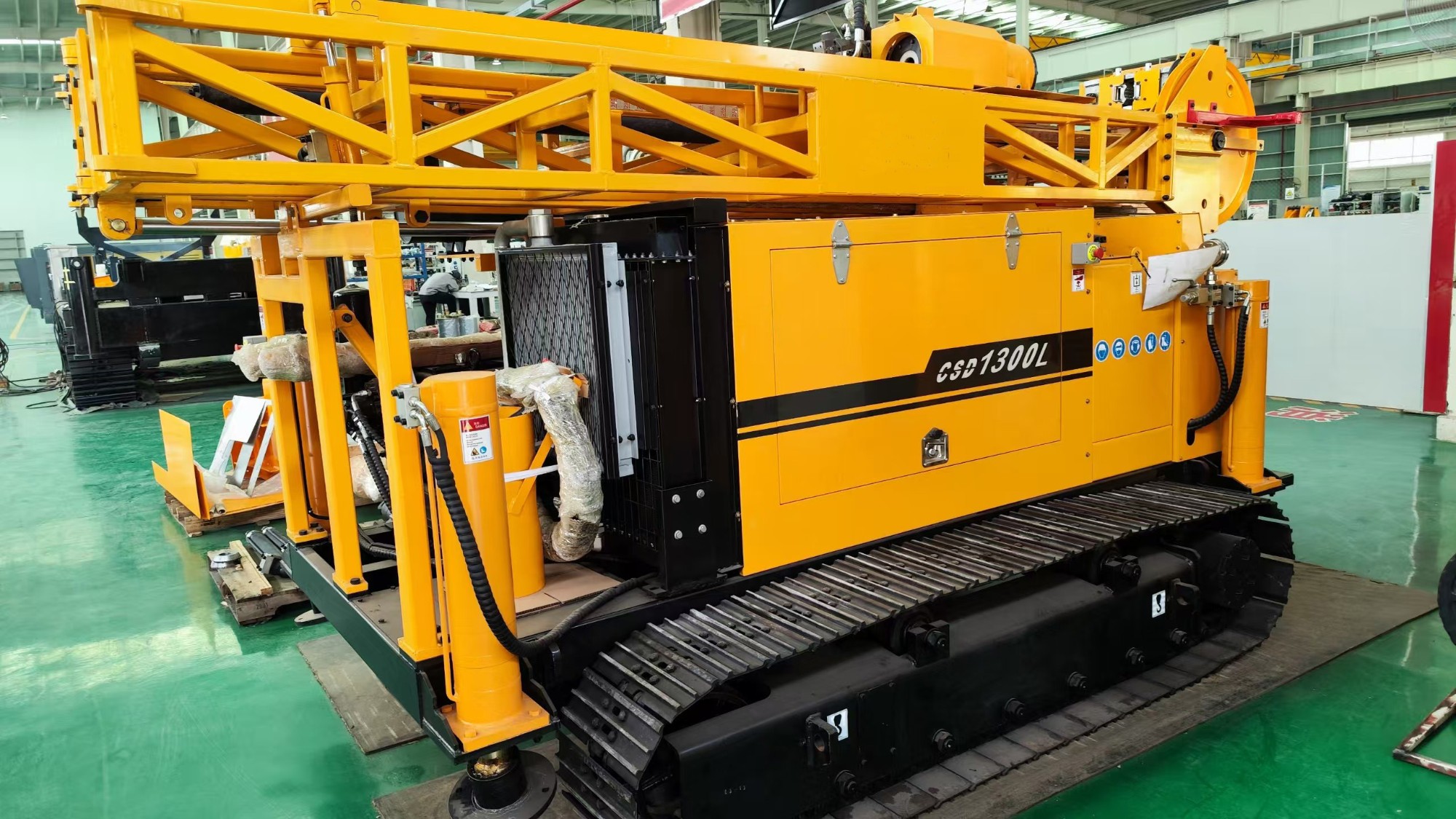

CSD1300L Diamond Core Drilling Rig
- Category： Best Selling
- Depth Capacity:N 1,000m / H 700m / P 400m
- Main Hoist:68KN（bare drum）
- Max Pull Force:120KN
- ax Rod Pull Length:6m
- Engine Power:132KW@2,500RPM Cummins
- Product description：CSD1300L drilling rig is specially designed for diamond drilling on ground surface. CSD1300L
Features
● Crawler track mounted；
● 4 speeds gear box ；
● Big chuck diameter up to 117mm；
● Stroke of drill head 3.5m suitable for 3m length rods；
● Mast has dump function；
● Mast folding design minimizes transportation dimensions；
● Independent hydraulic leveling jacks;
● Accurate control of feed pressure;
● Floating head protects the rod threads during make up and break out;
● Real time display of drilling data on the control panel gauges;
● Hydraulically controlled mud pump flow at the rig control panel;
● Premium hydraulic components of European/US origin;
● Powerful main winch of US origin；
● Wire line winch with automatic rope spooler.
After sales service
Our expert service engineer team is globally available, 24/7.
Note
Rigs are available with different mounting options and diesel or electric drive options. Please contact sales@cortechdrilling.com for more information.
Technical Parameter
|
Drilling Capacity |
|
|
Diameter of Drill Rod |
N, H, P |
|
Drilling Depth |
1,000m 700m 400m |
|
Engine |
|
|
Model |
Cummins 6BTA-5.9 |
|
Type |
Turbo Charge |
|
Power |
132KW |
|
RPM |
2,500rpm |
|
Drill Head |
|
|
Max Torque |
4,257Nm |
|
Max Rotation |
1,182rpm |
|
Feed Stroke |
3,500mm |
|
Max Inside Diameter |
117mm |
|
Pull/Push |
120KN/50KN |
|
Main Winch |
|
|
Max Pull |
68KN |
|
Pulling Speed |
28m/min |
|
Rope Diameter |
16mm |
|
Rope Length |
30m |
|
Wireline Winch |
|
|
Max Pull |
11KN(bare drum) |
|
Pulling Speed |
120m/min |
|
Rope Diameter |
6.6mm |
|
Rope Length |
1,500m |
|
Mast |
|
|
Length |
10m |
|
Drilling Angle |
45°-90° |
|
Dump Length |
1.1m |
|
Foot Clamp |
|
|
Drill Rod |
N, H, P |
|
Travelling Capacity |
|
|
Max Climbing Angel |
30° |
|
Max. Travelling Speed |
2km/h |
|
Transporting Dimensions |
|
|
L*W*H |
5,100×2,350×2,600mm |
|
Total Weight |
|
|
Total Weight |
8.5t |
