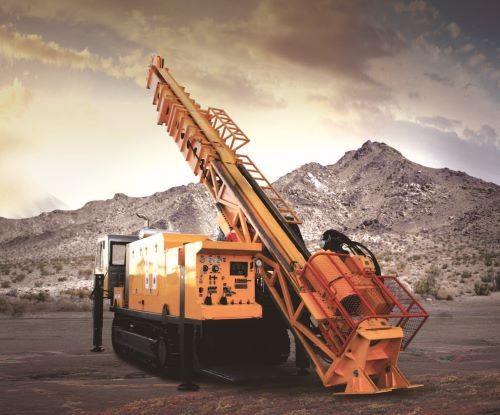

COREMASTER 3000 Diamond Core Drilling Rig
- Category： Products
- Depth Capacity:N2,300 H1,600 P1,050
- Main Hoist:185KN（bare drum）
- Max Pull Force:250KN
- ax Rod Pull Length:13.7m
- Engine Power:239KW@2,2000RPM Cummins
- Product description：
COREMASTER 3000 core drilling rig is specially designed for diamond core drilling. Robust structure plus strong power supply ensures high penetration rate and outstanding reliability.
Features
● Crawler mounted design;
● 4 speeds gear box ；
● Big chuck diameter up to 117mm；
● Independent hydraulic leveling jacks;
● Drill head has sliding function ;
● Telescopic mast;
● Mast has dump function；
● The rod collection support with capacity of 200x9m(NS rod) in the middle part of the mast；
● Independent hydraulic cooling system；
● Premium hydraulic components of European/US origin。
After sales service
Our expert service engineer team is globally available, 24/7.
Note
Rigs are available with different mounting options and diesel or electric drive options. Please contact sales@cortechdrilling.com for more information.
Technical Parameter:
|
Drilling Capacity |
|
|
Dia of Drill Rod |
BS 、NS 、HS 、PS |
|
Drilling Depth |
3,000m 2,300m 1,600m 1,050m |
|
Engine |
|
|
Model |
Cummins 6LTAA8.9-C325 |
|
Type |
Turbo |
|
Power |
239KW |
|
RPM |
2,200rpm |
|
Drill Head |
|
|
Max Torque |
8,170Nm |
|
Max Rotation |
1,150rpm |
|
Feed Stroke |
3,450mm |
|
Max Inside Diameter |
117mm |
|
Pull/Push |
250KN/90KN |
|
Main Winch |
|
|
Max Pull |
185KN |
|
Pulling Speed |
25m/min(low),60m/min(high) |
|
Rope Diameter |
24mm |
|
Rope Length |
40m |
|
Wireline Winch |
|
|
Max Pull |
18KN（bare drum） |
|
Pulling Speed |
120m/min（bare drum） |
|
Rope Diameter |
6.6mm |
|
Rope Length |
2,500m |
|
Mast |
|
|
Length |
11.2-13.7m |
|
Drilling Angle |
45°～90° |
|
Dump Length |
1.4m |
|
Foot Clamp |
|
|
Drill Rod |
BS, NS, HS, PS |
|
Travelling Capacity |
|
|
Max. Permissible Gradient |
30° |
|
Max. Travelling Speed |
2km/h |
|
Transporting Dimensions |
|
|
L*W*H |
11,240×2,310×3,330mm |
|
Total Weight |
|
|
Total Weight |
23.5t |
